Modified Fclass DMD(Hits:21)
Modified Fclass DMD-DMD-100
  • Modified Fclass DMD-DMD-100

DMD100 Saturated Flexible Laminates

Resin modified class F DMD

Polyester film with Non-woven fabric

In accordance with GB/T5591.3.1-2008 and IEC626-2



Description: The saturated DM100 made of Non-saturated class F DMD which is a three-layer flexible composite material, produced by using F-class adhesive(heat-resistant epoxy resin) to adhere the two faces of reliable high-melt-point polyester film( 6020 transparent polyester film or 6021 milky polyester film) with high quality hot-rolled non-woven polyester fabric (Dacron), and then the surface dipping in the high-class heat-resistant resin. The saturated DM100 also called modified class F DMD.The structure is resin[Dacron +(adhesive)+ Mylar +(adhesive)+ Dacron].

Advantages: It has excellent electrical, mechanical, soft and tear resistant properties, easy to fit in with the Automatic assembly line process.

Applications: DM100 is the perfect insulation material of F-class motors, it’s suitable for slot, liner, phase, and turn-to-turn insulation in low voltage electrical motors. It also can be used as interlayer insulation in transformers and other electrical appliances.

Test and stock:

1. standard:GB/T5591.31-2008 and IEC626-2

2.Storange:≦40℃,dry,clean in warehouse.Avoid fire ,heat and sunlight.

3.Storage life:6  months.still effctive if qualified in retest after 6  months.

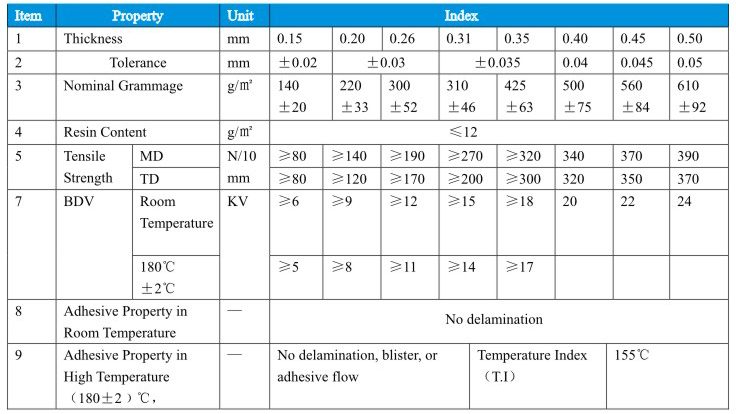

Features:

Thermal class:  F(155)

Thickness:  0.15-0.50mm

Standard width: 1000mm  (or according to customers’ requirements)

Color: white, green, blue , pink and according to customers’ requirements

Form:  roll, sheet, and strip

Adhesive property: 180±2, 10 minutes no delamination, blister, or adhesive flow.

Certification: UL products certification.

Superiority: Reasonable price, high quality, prompt delivery, and excellent service.

style="mso-spacerun:'yes';font-family:Calibri;mso-fareast-font-family:宋体;font-size:10.5000pt;mso-font-kerning:1.0000pt;" >, 10 minutes no delamination, blister, or adhesive flow.

Superiority: Reasonable price, high quality, prompt delivery, and excellent service.

Storage:≤40℃, dry, clean in warehouse. Avoid fire,heat and sunlight.

 Storage life:6 months.Still effective if qualified in retest after 6 months.




Item No.:DMD-100
Description

1.DMD(Dacron-mylar -dacron) is a  triplex laminates with polyester film and non-woven polyester felt. It is used for dry type transformer and electrical motors insulation.



 It is a Class B (130℃insulation material . It has High mechanical strength, excellent electrical property.



The width of DMD we can make from 6mm to 1500mm,thickness from 0.11mm-0.90mm.



 The color of  DMD in Haotai we can make: White , red ,green,blue,deep red,pink ( or customized)
