Aramid Insulation Paper

Description:

Chinese Aramid Insulation Paper is a perfect substitute of Dupont Nomex.

It is made of 100% aramid fiber. Thermal class is 220C degrees.



 Features:

Good thermal stability, flame resistance, electrical insulation, high dielectric strength, good mechanical properties, Chemical stability, radiation resistance.



 Applications:

Used in the field of metallurgy, lifting, hauling, mining, explosion-proof, marine, wind power, high-speed railway as slot insulation, liner insulation and turn insulation.

1. Transformers

2. Generators

3. Motors

4. Electromagnetic coils

Thickness: 0.06mm~0.60mm

Width: 10MM-905mm

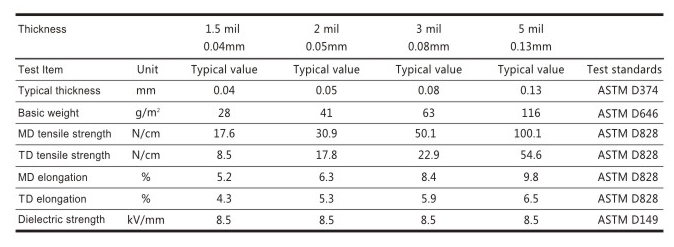

Specifications

Aramid Paper is of high temperature insulation paper made of pure aramid fiber and performs numerous excellent properties.

Aramid Paper is of high temperature insulation paper made of pure aramid fiber and exhibits numerous excellent properties such as high strength, low deformation, heat resistance, flame resistance, resistance to chemicals, good dielectric property and etc. It can be widely used in dry-type transformers, special transformers, microwave oven transformers, HID ballasts and other transformers as turn to turn insulation, interlayer insulation and insulation end. It can also be used in metallurgy, lifting, hauling, mining, explosion-proof, marine, wind power and other special motors and generators as slot insulation, liner insulation and turn insulation. It has temperature insulation rating of 220'C and can provide higher level of electrical equipment security.

Item No.:Aramid
