6520 Polyester Film with Fish Paper(Hits:23)
6520 Polyester Film with Fish Paper-6520.0
  • 6520 Polyester Film with Fish Paper-6520.0

6520 /6521 Polyester film/Fish paper Flexible Composite Material

Polyester film with Fish paper

According to GB/T5591.3.1-2008  IEC626-2



Description6520/6521 polyester film composite electrical insulation paper is a two-layer flexible laminate. It is produced by using B-class adhesive(heat-resistant epoxy resin) to adhere fish paper(Made of 100% wood pulp) with polyester film.

Advantages: This product has excellent mechanical strength, electric strength, reliable heat resistance and good impregnation property. It also has excellent tensile strength, acid-free and good voltage characteristic. Providing slitting service.

Applications: It is used in small motor, low-voltage motor, generator, and slot, phase, turn to turn and liner insulation in Class E-B motor and electrical appliances. And other electrical insulation with temperature requirement not exceeding 130.

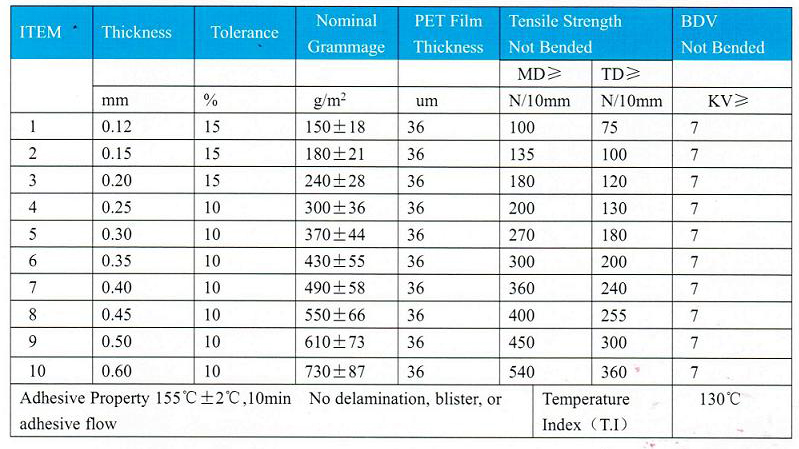

Features:

Thermal class: B(130)

Thickness:  0.12-0.60mm

Standard width: 1000mm  (or according to customers’ requirements)

Color:  green, blue, and brown

Form:  roll, sheet, and strip

Adhesive property: 155±2, 10 minutes no delamination, blister, or adhesive flow.

Superiority: competitive price, high quality, prompt delivery, and excellent service.

Storage:≤40℃, dry, clean in warehouse. Avoid fire,heat and sunlight.

 Storage life:12 months.Still effective if qualified in retest after 12 months.


Item No.:6520.0
