Epoxy-resin Prepreg SHS Flexible Laminates

Polyimide film and Non-woven polyester fabric

In accordance with GB/T5591.3.1-2008

Description: The Epoxy-resin Prepreg SHS is a three-layer flexible composite material, which is consisting of non-woven polyester and polyimide film in impregnation of high temperature resistant H-class epoxy-resin produced by baking. High content of dissolvable resin, firm insulating layer after heat curing when winding on the conductor, high peeling strength. SHS-P is for short.

Advantage: SHS-P can be stocked a long time at room temperature. It has low curing temperature and fast curing features. This material has outstanding heat-resistance and good dielectrical and mechanical properties; it is easy to penetrate and has high adhesion. The width range we can supply is from 10mm to 1900mm. It is H-class insulation materials.

Application: It is suitable for layer insulation of H-class cast resin dry-type transformers and slot, liner and turn-to-turn insulation of H-class motors.

Test and stock:

1. standard:GB/T5591.31-2008 and IEC626-2

2.Storange:≦30℃,dry,clean in warehouse.Avoid fire ,heat and sunlight.

3.Storage life:6 months.still effctive if qualified in retest after 6 months.

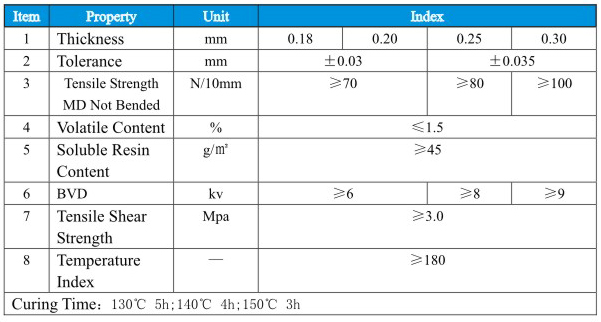

Features:

Thermal class:  H(180)

Thickness:  0.18-0.30mm

Standard width: 1000mm  (or according to customers’ requirements)

Color: white, green, blue , pink and according to customers’ requirements

Form:  roll, sheet, and strip

   Curing time: 130 5h; 140 4h; 150 3h

Superiority: Reasonable price, high quality, prompt delivery, and excellent service.

Storage:Upright,≤30℃,dry,clean in warehouse.Avoid fire,heat and sunlight.

Storage life:6 months.Still effective if qualified in retest after 6 months.


Item No.:
