SHS Flexible Laminates

Polyimide film and Non-woven polyester fabric

 In accordance with GB/T5591.3.1-2008



DescriptionSHS flexible laminate is a three-layer flexible composite material, produced by using H-Class adhesive to adhere the two faces of polyimide film with non-woven polyester fabric. High content of dissolvable resin, firm insulating layer after heat curing when winding on the conductor, high peeling strength.

AdvantageIt has good physical mechanical property, dielectric property, soft and tear resistant , heat property and fire resistance property. It is class H insulation material. The width range we can supply is from 10mm to 1800mm.

Application: The SHS is suitable for layer insulation of low-tension coil on H-class dry-type transformers and slot, liner and turn-to-turn insulation of H-class motors as well as other abnormal insulating spare parts, and other electrical appliances..

Test and stock:

1. standard:GB/T5591.31-2008

2.Storange:≦40℃,dry,clean in warehouse.Avoid fire ,heat and sunlight.

3.Storage life:12 months.still effctive if qualified in retest after 12 months.

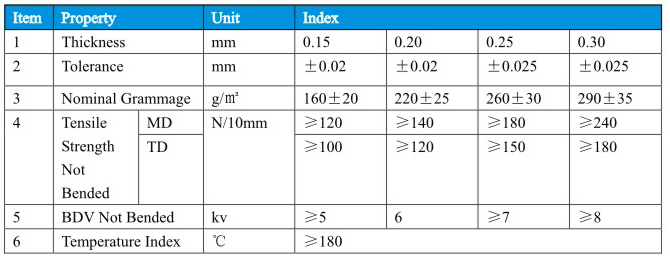

Features:

Thermal class:  H(180)

Thickness:  0.15-0.30mm

Standard width: 1000mm  (or according to customers’ requirements)

Color: white, green, blue , pink and according to customers’ requirements

Form:  roll, sheet, and strip

Superiority: Reasonable price, high quality, prompt delivery, and excellent service.

Storage:Upright,≤40℃,dry,clean in warehouse.Avoid fire,heat and sunlight.

Storage life:12 months.Still effective if qualified in retest after 12 months.


Item No.:
